Infratrol Ships Ovens for Stabilizing Temperature of Plastic Extrusions

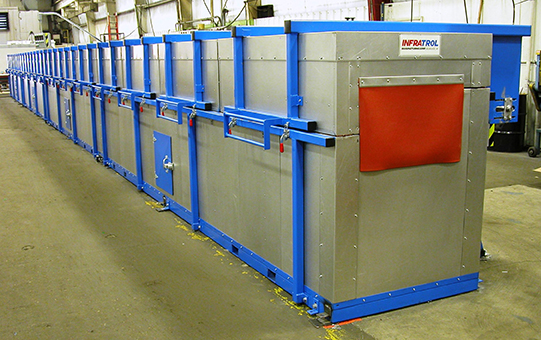

Oven for Stabilizing Temperature of Plastic Extrusions

May 26, 2014

• To allow temperature stabilization of continuous billets of plastics
• 250º F Operating, 400º F Maximum
• Overall oven size: 80’ long x 7’6” high
• Maximum product size: 18” w x 6” h
• Product load: 80 lbs per foot
• Non-powered steel roller conveyor; machine fed and unloaded

Plastic Extrusion Temperature Stabilizing
Oven with Access Doors Open

Special Features

• Access Doors – 16 top access hinged doors with counterweighted lift design allow ease of operation.
• Circulation Ducts – High circulated air volume from both ends of product returned at center of each zone provides uniform temperature.
• Electrical Control – Includes NEMA rated enclosure and separate pushbutton and temperature control station.
• Oven Construction – Non-settling mineral wool insulation and insulated floor keep heat transfer to outer shell at a minimum.

Plastic Extrusions

Ref #7570
