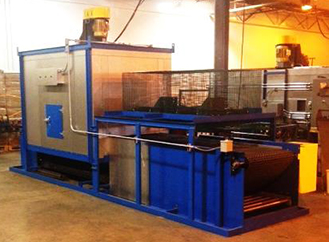

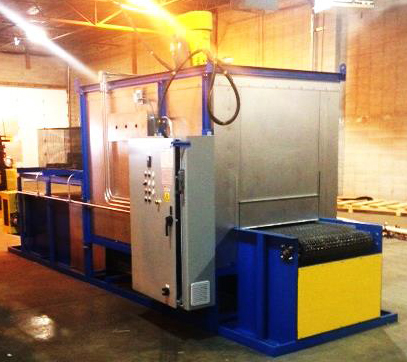

Oven for Drying Lubricant from Motor Rotors Shipped by Infratrol
June 16, 2014
- Electrically heated oven, 300°F Operating Temperature, 400°F Maximum Temperature
- 16'6" overall length, 6'6" heated length, 5'0" cooling by propeller fan
- Product Information: Aluminum & Steel rotors; 5" diameter, 5 lbs. each; 4,000 lbs. per hour through the oven
Special Features
- Portable Oven – Oven is compact enough to be moved around the customer’s facility. Having the equipment electrically heated makes portability easier as well.
- Forced Air Cooling – Two 30" diameter propeller fans mounted above the product force air onto the parts to cool them enough to be handled and unloaded by the customer.
- Conveyor System – A flat wire steel belt transports the parts through the oven. This conveyor includes a variable frequency drive (VFD) on the motor in order to easily adjust the speed, and overload protection to protect the conveyor in-case of a jam.
- Top-Down Airflow – The top air supply duct forces the heated air onto the product below. This air supply design maximizes air impingement onto the product, ensuring the driest possible product.
Ref #7433
