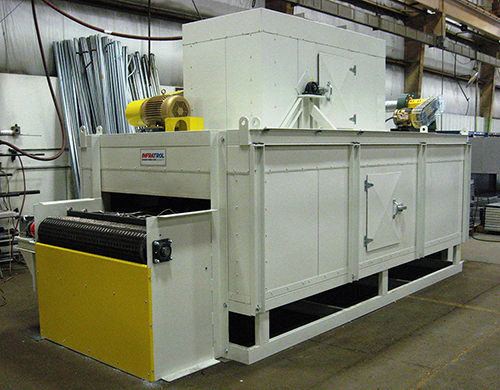

Filter Adhesive Curing Oven Designed for Major Automotive Manufacturer
Filter Adhesive Curing Oven for
Automotive Manufacturer
August 19, 2014
- Gas fired cure oven
- 377º F Operating, 450º F Maximum
- Product size: 2.5” x 4”
- Overall oven size: 16'‑0" Long x 6'‑2" Wide x 8'‑0" High
- Belt Conveyor
SPECIAL FEATURES
Gas Convection Equipment – Nozzle mixing type gas burners provide a wide range of turn-down. Burner includes integral blower for combustion, so that changes in air circulation within the oven don’t affect burner operation.
Automotive Filter
Belt Conveyor – Steel slide bed supported conveyor running the length of the oven.
Oven Construction – Insulated floor and separate insulated heater housing, equipped with fresh air inlet and manual damper.
Accesss Doors – Separate access doors for heater and blower housing, equipped with pressure relief latches and door seals.
Ref. #7647
