Partial Vacuum Rubber Curing Oven Shipped to Building Products Manufacturer
November 11, 2014

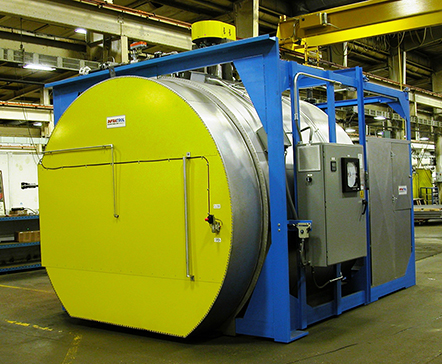

Partial Vacuum Rubber Curing Oven
for Building Products Industry
- For curing silicone and EPDM rubber weather stripping
- Electrically heated partial vacuum oven
- Temperature: 400°F Operate, 500°F Maximum
- Vacuum Pressure: 15 in. Hg
- Product Handling: 5,000 to 7,000 feet of product rolled onto a reel cart
- Equipment Size: 7'10" Deep x 12'0" Wide x 9'7" High
SPECIAL FEATURES
VACUUM PUMP: Claw-type vacuum pump to exhaust vapors from the process. Vapors are condensed in a receiving vessel so that condensed byproducts of the process can be captured and reprocessed for secondary uses.
CHAMBER ACCESS DOORS: Hinged access door with pressure relief latches and a pneumatically inflated door seal on all four edges of the door, and pneumatic door assists option.
TESTING: Oven included shop assembly and testing, as well as field installation, testing, and training.
Foam Rubber Weather Stripping

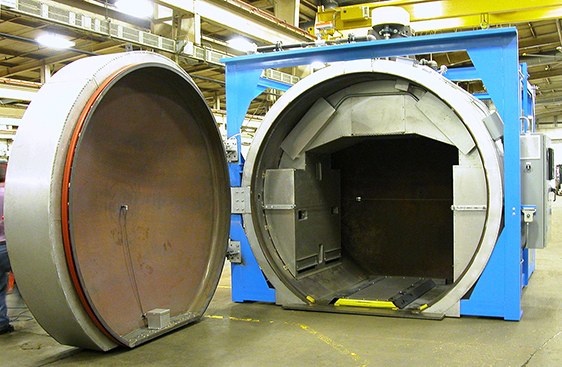

Access Door - Partial Vacuum Rubber Curing Oven
Ref. 7494
